HB 160 Injection Moulded Plastic plate thickness tolerance 0-0.1mm

Product Description:

Plastic Mold Parts are made of 50C material, with hardness HB=160-180, and the plate thickness tolerance is +0-0.1mm. The whole set of screw teeth is processed by CNC extrusion teeth, and the screw head is processed by CNC sinking. The square iron screw hole is processed by CNC, with good verticality. The honing true round guide sleeve can effectively increase the number of opening and closing molds by 20%, and prevent the guide post from being pulled, thus improving the service life of the mold. DXM has high-end imported cutting tools (Swiss Sandvik and Japanese BIG), imported equipment (MAZAK, OKUMA, MORI SEIKI, MAKINO) and pre-customizable accessories to shorten the mold production time. The precision milling and precision grinding surface treatment are adopted, and the quotation is tax-inclusive price, but does not include freight. The quotation of DXM includes 13% value-added tax, and the freight will be calculated separately before the order is confirmed.

Features:

• Product Name: Plastic Mold Parts
• Logo: DXM
• Application: Daily Necessities, Toys, Cosmetics, Electrical Appliances, Medical Equipment, Etc.
• Delivery: Standard Mould Base: Range 15*15cm-35*45cm; Normal Production Time 1 Day Standard Modified Mould Base: Range 15*20cm-40*50cm; Normal Production Time 1-2 Days
• Standards:
  • Honing True Round Guide Sleeve Can Effectively Increase The Number Of Opening And Closing Moulds By 20%, Prevent Guide Post From Being Pulled And Improve The Service Life Of The Mould.
  • Customized 50c Material, Hardness HB=160-180. Higher Hardness, Lower Deformation Rate, Better Finish And Better Rust Resistance Than Ordinary Steel(hardness 140-170).
  • The Whole Set Of Screw Teeth Use CNC Extrusion Teeth Process, Smooth Screw Teeth, Easy To Disassemble And Assemble.
  • The Screw Head Is Processed By CNC Sinking, The Bottom Of The Hole Is Flat, And The Locking Performance Is Better.
  • The Square Iron Screw Hole Is Processed By CNC, With Good Verticality.
  • The Plate Thickness Tolerance Is +0-0.1mm. Prepare Pre-customizable Accessories To Shorten The Mould Production Time.
  • Imported Equipment: MAZAK, OKUMA, MORI SEIKI, MAKINO, With Accurate Repeated Positioning And Precision Hole And Frame Tolerance Of 0.01mm And Good Finish.
  • Using High-end Imported Cutting Tools (Swiss Sandvik And Japanese BIG) To Improve The Straightness And Precision Of Holes And Frames And The Accuracy And Finish Of The Entire Processing Of The Mould Base.
• Packaging: Fumigation-free Wooden Box

Technical Parameters:

Applications:

Plastic Mold Parts are manufactured by DXM, a company based in Guangdong, China, and certified with ISO 9001:2015. Minimum order quantity is 1, and the price depends on the drawings and processing requirements provided by customers. Packaging details are fumigation-free wooden boxes via sea container transportation. Delivery time is 15*15cm-35*45cm for standard mould bases, and 15*20cm-40*50cm for standard modified mould bases with a normal production time of 1-2 days. Payment terms are diverse and customers can ask for VAT invoices. Supply ability is 290000 sets per year, with sizes ranging from 20*25cm-50*70cm. Product selection includes AB plate and push plate change steel type, rough (fine) frame processing, precision frame chamfering, round frame, back needle through push plate, limit pin, guide post inversion, standard needle, plate edge (EGP), standard code mould pit, fine work surface code mould pit, top stick hole, side lock (SIDELOCK), top lock (TOPLOCK), oblique guide position assistant (TAPERBLOCK), suction nozzle hole, code die iron (locking module) and more. Surface treatment includes precision milling and grinding, with colors such as steel being available. The Plastic Mold Parts can be applied for daily necessities, toys, cosmetics, electrical appliances and medical equipment.

Customization:

Brand Name: DXM

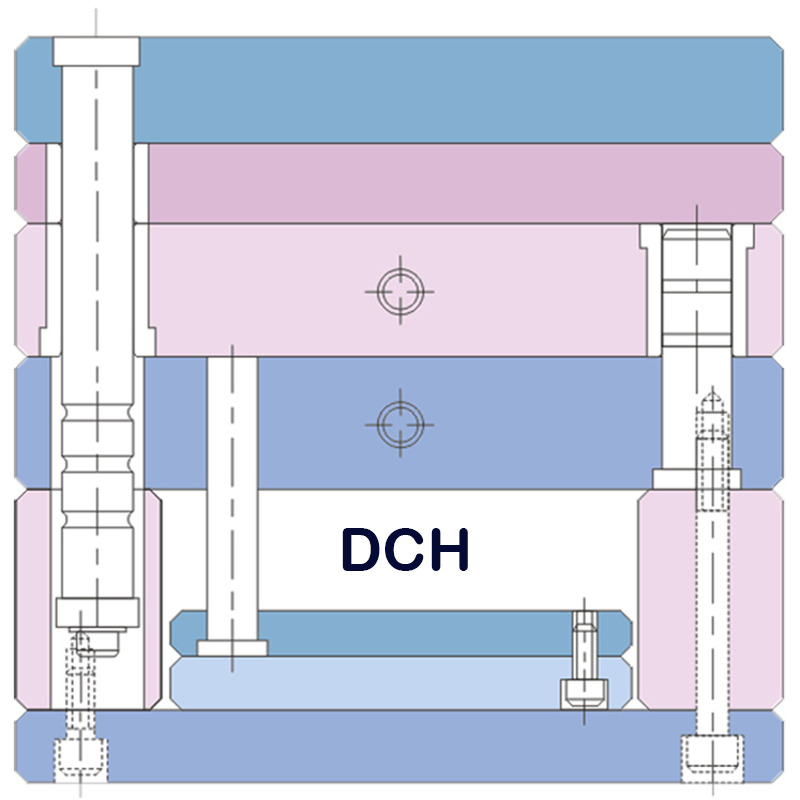

Model Number: Standard Fine water mouth system mould base
Place of Origin: Guangdong,China
Certification: ISO9001:2015
Minimum Order Quantity: 1
Price: Quotation according to the drawings and processing requirements you provided
Packaging Details: All exported products are packaged in fumigation-free wooden boxes and transported to designated ports by sea transportation using containers.
Delivery Time: Standard mould base: Range 15*15cm-35*45cm; normal production time 1 day Standard modified mould base: Range 15*20cm-40*50cm; normal production time 1-2 days
Payment Terms: We provide a very diverse range of payment methods. Please explain your needs to our sales staff. Can DXM provide VAT invoices? All orders can be invoiced with VAT special invoices.
Supply Ability: 290000 Sets/Year
Surface Treatment: Precision Milling, Precision Grinding
Processing: CNC Machining(Mazak / Okuma / Mori Seiki / Makino, Etc)
Application: Daily Necessities, Toys, Cosmetics, Electrical Appliances, Medical Equipment, Etc.
Size: 15*15cm-40*50cm
Product selection: 1. In Addition To Standard Mould Base, Can Other Processing Projects Be Done For Mold Frame Products?
● The Following Additional Processing Projects Can Be Done For Mould Base Products: AB Plate And Push Plate Change Steel Type, Rough (fine) Frame Processing, Precision Frame Chamfering, Round Frame, Back Needle Through Push Plate, Limit Pin, Guide Post Inversion, Standard Needle. Plate Edge (EGP), Standard Code Mould Pit, Fine Work Surface Code Mould Pit, Top Stick Hole, Side Lock (SIDELOCK), Top Lock (TOPLOCK), Oblique Guide Position Assistant (TAPERBLOCK), Suction Nozzle. Hole, Code Die Iron (locking Module).
● If The Above Processing Projects Cannot Meet Your Needs, Please Contact Us Directly.

Support and Services:

We provide technical support and service for our Plastic Mold Parts products. Our experts are available to help you with any questions you may have about our plastic mold parts. We cover a wide range of topics, including design, installation, operation, maintenance, and troubleshooting.

We strive to provide you with the best possible support and service. Our team is always available to help you. We offer a variety of resources, such as technical documents, tutorial videos, and FAQs. We also provide telephone, email, and live chat support.

For more information, please contact us today. We look forward to helping you with all your plastic mold parts needs.

Packing and Shipping:

FAQ:

• Q: What is the brand name of Plastic Mold Parts?

  A: The brand name of Plastic Mold Parts is DXM.

• Q: What is the model number of Plastic Mold Parts?

  A: The model number of Plastic Mold Parts is Standard Fine water mouth system mould base.

• Q: Where is Plastic Mold Parts made?

  A: Plastic Mold Parts are made in Guangdong, China.

• Q: Does Plastic Mold Parts have ISO certification?

  A: Yes, Plastic Mold Parts have ISO9001:2015 certification.

• Q: What is the minimum order quantity of Plastic Mold Parts?

  A: The minimum order quantity of Plastic Mold Parts is 1.
